NM, NMD close coupled centrifugal pumps with threaded ports

    • close-coupled, centrifugal pumps

    • electric motor with extended shaft directly connected to the pump up to 30 kW, new bracket construction for standard motors (stub-shaft construction) from 37 to 75 kW with integrated thrust bearing.

    • pump casing with axial suction and radial delivery on top, main dimensions and performance according to EN 733.

    • NM: version with pump casing and lantern bracket in cast iron

    • B-NM: version with pump casing and lantern bracket/casing cover in bronze (the pumps are supplied fully painted)

    • connections: flanges according to PN 10, EN 1092-2.

    • NM, NMD: version with pump casing and lanter bracket in cast iron

    • B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted)

    • close-coupled, centrifugal pumps

    • Counter-flanges (on request):

      • from NM 32/.. to NM 50/… : Screwed flanges EN 1092-1, PN 16

      • from NM 65/.. to NMS 100/… : Flanges for welding EN 1092-1, PN 10

    • for clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0,2%)

    • for water supply

    • for heating, air conditioning, cooling and circulation plants

    • for civil and industrial applications

    • for fire fighting applications

    • for irrigation

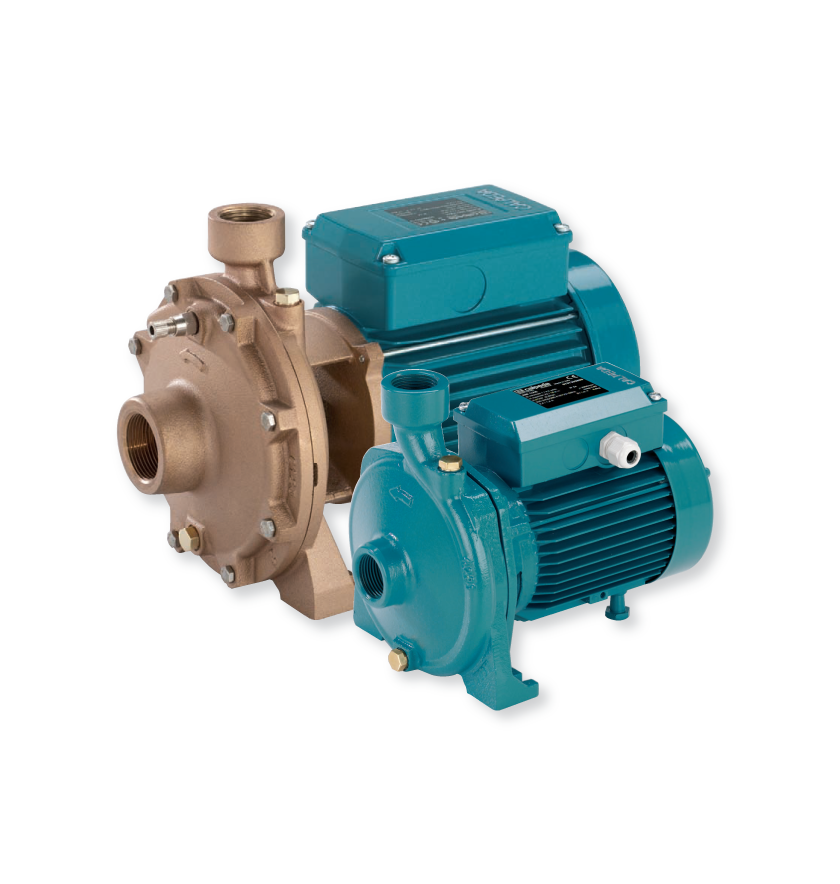

NM, NMS close coupled centrifugal pumps with threaded ports

    • close-coupled, centrifugal pumps

    • electric motor with extended shaft directly connected to the pump

    • NM: single-impeller

    • NMD: with two back-to-back impellers (with axial thrust balancing)

    • connections: threaded ports ISO 228/1 (BS 2779)

    • NM, NMD: version with pump casing and lanter bracket in cast iron

    • B-NM, B-NMD: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted)

    • for clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%) vízellátó hálózatokban

    • for water supply

    • for heating, air-conditioning, cooling and circulation plants

    • for civil and industrial applications

    • for fire fighting applications

    • for irrigation

6SD, 6SDN submersible borehole pumps with noryl impellers (6 inches)

    • submersible borehole pumps for 6” (DN 150 mm)

    • external jacket in stainless steel AISI 304 and stages in noryl

    • radial impellers: 6SDN 12, 16, 21

    • mixed flow impellers: 6SD 18, 19, 20

    • connection: screwed connection ISO 228

    • delivery casing with built-in non-return valve

    • for water supply

    • for civil and industrial applications

    • for fire fighting applications

    • for irrigation

CA self-priming liquid ring pumps

    • close-coupled self-priming liquid ring pumps with star impeller

    • CA: version with pump casing and lanter bracket in cast iron

    • B-CA: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted)

    • for clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials

    • if the liquid to be pumped has entrained air or gas or the flow in the suction pipe is not stable for drawing water out of a well

    • for increasing network pressure (follow local specifications)

NM4, NMS4 Close coupled centrifugal pumps with flanged connection

    • close-coupled centrifugal pumps

    • electric motor with extended shaft directly connected to the pump up to 15 kW, new bracket construction for standard motors (stub-shaft construction) from 18,5 to 75 kW with integrated thrust bearing

    • pump casing with axial suction and radial delivery on top, main dimensions and performance according to EN 733 with additional sizes for completion

    • NM4: version with pump casing and lanter bracket in cast iron

    • B-NM4: version with pump casing and lanter bracket/casing cover in bronze (the pumps are supplied fully painted)

    • connections:

      • NM4 25/… : Threaded ports ISO 228

      • from NM4 32/.. to NMS4 150/.. : Flanges according to PN 10, EN 1092-2

    • counter-flanges (on request):

      • from NM4 32/.. to NM4 50/.. : Screwed flanges EN 1092-1, PN 16

      • from NM4 32/.. to NMS4 150/.. : Flanges for welding EN 1092-1, PN 10

    • for clean liquids without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0,2%)

    • for water supply

    • for heating, air conditioning, cooling and circulation plants

    • for civil and industrial applications

    • when low noise operating is required

    • for irrigation

MXA multi-stage self-priming pumps

    • horizontal multi-stage, self-priming, close coupled pump

    • single-piece barrel casing in chrome-nickel stainless steel, with front suction port above pumps axis and radial delivery at top

    • noryl impeller

    • for water supply

    • for domestic use, for garden use and irrigation

MXS 5 inches submersible pumps with stainless steel impellers and stages

    • close coupled multi-stage submersible pumps

    • all parts in contact with the fluid both internal and external are in chrome-nickle stainless steel

    • MXSM with built-in capacitor, accessible through the delivery casing

    • hydraulics located below the motor with the motor cooled by the pumped fluid

    • safe operation is possible with the motor only partially submerged

    • double shaft seal with oil chamber

    • the suction strainer prevents the entrance of solids with diameter bigger than 2 mm

    • for water supply from wells, tanks or reservoirs

    • for domestic, civil and industrial applications, for garden use, irrigation and rain water harvesting systems

MXV vertical multi-stage close coupled pumps

    • vertical multi-stage pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line)

    • corrosion-resistant bearing sleeves lubricated by the pumped liquid

    • a pump with thrust bearing and sleeve coupling for use of any standard motor with IM V1 construction

    • MXV EI: pumps with frequency converter (available with power from 0,75 kW up to 22 kW)

    • for water supply systems

    • for clean non-explosive liquids, without solid, filamentary or abrasive matter (with adaptation of sealing materials on request)

    • a universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations

NGX jet pumps with stainless steel pump casing and noryl impeller

    • close-coupled self-priming shallow-well pump with built-in ejector

    • a high-quality pump for domestic water supply. Designed with environmental considerations, featuring a stainless steel casing, brass alloy impeller with minimal use of plastic materials

    • for drawing water out of a well

    • for lifting water containing air or other gases

    • for increasing water pressure from flooded suction applications

    • as pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure)

    • for garden use

    • for washing with a jet of water

SDX submersible borehole pumps with stainless steel impellers

    • submersible borehole pumps for 6” wells (DN 150 mm) and 8” (DN 200 mm)

    • 6SDX and 8SDX: with external jacket and stages in stainless steel AISI 304

    • 6SDX and 8SDXL: with external jacket and stages in stainless steel AISI 316

    • impellers:

      • radial impellers:

        • 6SDX(L) 18

      • mixed flow impellers:

        • 6SDX(L) 30-46-65

        • 8SDX(L) 78-97

    • connection: Screwed connection ISO 228

    • delivery casing with built-in non-return valve

    • for water supply

    • for civil and industrial applications

    • for fire fighting applications

    • for irrigation

I-MPC self-priming swimming pool pump with integrated frequency converter

    • self-priming swimming pool pumps with built-in strainer and motor insulated from pumped water

    • the pump is made with high quality plastic materials, corrosion and sand erosion resistant

    • with stainless steel diffuser

    • base-plate kit

    • integrated frequency converter

    • high efficiency asynchronous motor

    • Motor power control

    • voltage and current control

    • monitoring of maximum starting current

    • for water circulation in swimming pool filtration systems

    • for clean or slightly dirty water with solids in suspension

4SD, 4SDF submersible borehole pumps with noryl impellers (4 inches)

    • submersible borehole pumps for 4” wells (DN 100 mm)

    • external jacket in stainless steel AISI 304 and stages in noryl

    • radial floating impellers: 4SDP

    • connection: screwed connection ISO 228

    • delivery casing with built-in non-return valve

    • for water supply

    • for civil and industrial applications

    • for fire fighting applications

    • for irrigation

GM 10 Submersible Drainage Pump

    • submersible drainage pump constructed with composite polymers developed especially for this product

    • these new rustproof materials are resistant to corrosion, indeformable at maximum temperature differentials in the pump and motor and resistant to internal and external strain

    • shaft of chrome steel AISI 430

    • three lip seals in NBR

    • minimum dimension and high levels of performance, for use in many different applications, for flow rates up to 200 l/min

    • with float switch for automatic start/stop

    • for clean or slightly dirty water

    • for draining flooded rooms or tanks

    • extraction of water from ponds, flowing water or pits for collection of rain water

    • for irrigation purposes

    • for use outdoor, the power supply cable shall have a length not less than 10 m

C centrifugal pumps with open impeller

    • close-coupled centrifugal pumps with open impeller

    • free-flow impeller (vortex or recessed impeller) for type C 16/1E

    • C: version with pump casing and lanter bracket in cast iron

    • B-C: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted)

    • for moderately dirty liquids or emulsions

    • for industry and agriculture

N, N4 end-suction centrifugal pumps standardized EN 733

    • single-stage end-suction centrifugal pumps, with bearing bracket

    • the electro pumps N, B-N, N4, B-N4 series comply with the European Regulation no. 547/2012 in force starting from 01.01.2013.

    • nominal duty points and main dimensions in accordance with EN 733

    • back Pull-Out construction, for simple and quick dismantling and reassembly

    • N, N4: version with pump casing and lanter bracket in cast iron

    • B-N, B-N4: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted)

    • rated speed of rotation (50 Hz): N = 2900 rpm. ; N4 = 1450 rpm

    • connections: PN 10 flanges EN 1092-2

    • counter flanges (on request):

      • from 32-160 to 50-250 : Screwed flanges PN 16 EN 1092-1

      • from 65-125 to 150-400 : Flanges for welding PN 10 EN 1092-1

    • shaft sealing:

      • standardized mechanical seal in accordance with ISO 3069

      • stuffing box seal (on request)

    • for clean liquids, without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0.2%)

    • for water supply

    • for heating, air conditioning, cooling and circulation plants

    • for civil and industrial applications and for agriculture

    • for fire fighting applications

    • for irrigation

MGP horizontal multi-stage close coupled pumps

    • horizontal multi-stage close coupled pump

    • single-piece barrel casing in cast iron, with front suction port above pumps axis and radial delivery at top

    • cast iron pump casing

    • noryl impellers

    • for water supply

    • for domestic use, for garden use and irrigation

MXP horizontal multi-stage close coupled pumps with noryl impellers

    • horizontal multi-stage close coupled pump

    • single-piece barrel casing in chrome-nickel stainless steel, with front suction port above pumps axis and radial delivery at top

    • stages in noryl

    • for water supply

    • for domestic use, for garden use and irrigation

MXV-B vertical multi-stage close coupled pump

    • vertical multi-stage close coupled pumps with suction and delivery connections of the same diameter and arranged along the same axis (in-line)

    • all parts that come into contact with the liquid, including wet-end covers, are in chrome-nickel stainless steel with corrosion resistant bearing sleeves lubricated by the pumped liquid

    • MXV-B EI: pumps with frequency converter (available with power from 0,75 kW up to 7,5 kW)

    • for water supply systems

    • for clean non-explosive liquids, without solid, filamentary or abrasive matter and non-aggressive for stainless steel (with adaptation of sealing materials on request)

    • a universal pump for civil and industrial use, for pressure-boosting systems, fire-extinguishing systems, high-pressure washing plants, irrigation, agricultural uses and sport installations

NGL jet pumps with cast iron pump casing and noryl impellers

    • close-coupled self-priming shallow-well pump with built-in ejector

    • impeller material: noryl

    • pump casing material: cast iron (GJL 200 EN 1561)

    • for drawing water out of a well

    • for lifting water containing air or other gases

    • for increasing water pressure from flooded suction applications

    • as pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure)

    • for garden use

    • for washing with a jet of water

SDS submersible borehole pumps with cast iron (or bronze) impellers

    • submersible borehole pumps for 6” wells (DN 150 mm), 8” (DN 200 mm) and 10” (DN 250 mm), with stages in cast iron or in bronze, on request

    • impellers: mixed flow impellers

    • connection:

      • screwed connection ISO 228 for 6SDS

      • flange with counter-flange for welding for 8SDS and 10SDS

    • delivery casing with built-in non-return valve

    • for water supply

    • for civil and industrial applications

    • for fire fighting applications

    • for irrigation

MPC self-priming swimming pool pumps

    • self-priming swimming pool pumps with built-in strainer and motor insulated from pumped water

    • the pump is made with high quality plastic materials, corrosion and sand erosion resistant

    • with stainless steel diffuser

    • base-plate kit

    • for water circulation in swimming pool filtration systems

    • for clean or slightly dirty water with solids in suspension

GX ZERO , 1mm szívóképességgel, visszacsapó szeleppel

    • single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and suction non-return valve

    • suction capability up to 1 mm from the bottom

    • motor cooled by the pumped water passing between the motor jacket and the external jacket

    • double shaft seal with oil chamber

    • the pump is fitted with a suction non-return valve which, during operation, allows to manually move the pump to several points in the room and draw water up to 1 mm avoiding that the pump loses its priming

    • for clean water containing solids up to 3 mm grain size

    • for draining rooms or or emptying tanks

    • extraction of water from ponds, streams or pits and for rainwater collection

    • for irrigation purposes

PF pre-filters in stainless steel, PFP pre-filters in polypropylene

    • PF type

      • pre-filters with removable basket, constructed in stainless steel

      • loose ring flange connections

      • clamp type closing with lever and double adjustment clamp

      • inner basket with Ø 6 mm holes

    • PFP type

      • pre-filters with removable basket, constructed in polypropylene

      • loose ring flange connections

      • transparent closing lid

      • easy-to-remove lid with 6 knobs

      • inner basket with Ø 5 mm holes

    • for water circulation pump in filtration plants in swimming pools

    • to prevent foreign bodies from entering the pump and the plant

A self-priming centrifugal pumps with open impeller

    • close-coupled centrifugal pumps with open impeller

    • the built-in backflow preventer avoids reverse siphoning when the pump is stopped and assures automatic re-priming at the next start

    • the pump re-primes itself even if partially filled with liquid and with completely empty suction pipe

    • A: version with pump casing and lanter bracket in cast iron

    • B-A: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted)

CT 61 peripheral pumps

    • close-coupled peripheral pump (regenerative pump) with turbine impeller

    • compact, patented construction with single piece motor casing and pump-side wall

    • protected against water entering the motor from outside

    • CT: version with pump casing in cast iron

    • B-CT: version with pump casing in bronze (the pumps are supplied fully painted)

    • for clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials

    • for increasing network pressure (follow local specifications)

    • for the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation

GXR, GXV submersible pumps in stainless steel

    • single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and with open impeller

    • motor cooled by the pumped water passing between the motor jacket and the external jacket

    • double shaft seal with oil chamber

    • minimum dimension and high levels of performance, for use in many different applications, head up to 12,7 m and flow rates up to 220 l/min

    • for clean water containing solids up to 10 mm grain size

    • for draining rooms or or emptying tanks

    • extraction of water from ponds, streams or pits and for rainwater collection

    • for irrigation purposes

    • for outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41

MXH horizontal multi-stage close coupled pumps in stainless steel

    • horizontal multi-stage close coupled pumps in chrome-nickel stainless steel

    • compact and robust construction, without protruding flange and with single-piece lantern bracket and base

    • single-piece barrel casing, with front suction port above pumps axis and radial delivery at top

    • filling and draining plugs on the middle of the pump, accessible from any side (like the terminal box)

    • MXH EI: pumps with frequency converter (available with power from 0,55 kW up to 4 kW)

    • for water supply

    • for clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal materials, on request)

MPSU 5 inches vertical multi-stage close coupled submersible pumps

    • 5” Vertical multi-stage close coupled submersible or surface pumps

    • external jacket in stainless steel AISI 304 and stages noryl

    • MPSUM with built-in capacitor, accessible through the delivery casing

    • suction connection on the lower casing and delivery connection on the top casing

    • motor cooled by the pumped water passing between the motor jacket and the external jacket

    • double mechanical shaft seal with interposed oil chamber

    • for clean water without abrasives or additives aggressive for the materials of the pump

    • for domestic, civil and industrial applications

    • for installation in confined space with minimum ventilation

    • for installation in locations subject to risk of temporary flooding, the pump can be fully immersed

    • for installation in areas exposed to water jetting

    • when low-noise operation is required

NG jet pumps with cast iron (or bronze) pump casing and brass impellers

    • close-coupled self-priming shallow well jet pumps with built-in ejector

    • NG: version with pump casing and lanter bracket in cast iron

    • B-NG: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted)

    • for drawing water out of a well

    • as pressure boosting pump for central water systems with low pressure (follow local specifications if increasing network pressure)

    • for clean liquids or slightly dirty surface water

    • for garden use

    • for washing with a jet of water

NR(D), NR4 in-line, close-coupled, centrifugal pumps

    • close-coupled, single-impeller, centrifugal pumps; electric motor with extended shaft directly connected to the pump

    • NR, NR4: Single head pump

    • NRD: Twin head pump with bulit-in automatic switching valve - the two head can operate singularly or in parallel

    • pump casing with suction and delivery connections with the same diameter and on the same axis (in-line)

    • connections: Flanges PN 10, EN 1092-2

    • counter flanges (on request):

      • NR,NR4 32,40,50,65 : Screwed flanges PN 16, EN 1092-1

      • NR4 100, NR4 125 : Flanges for welding PN 10, EN 1092-1

    • NR(D) EI, NR4 EI: version with frequency converter (on request)

    • for clean liquids, without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0.2%)

    • for heating, conditioning, cooling and circulation plants

    • for civil and industrial applications

    • when low noise operation is required (n = 1450 rpm)

T, TP close-coupled peripheral pumps

    • close-coupled peripheral pumps (regenerative pumps) with turbine impeller

    • T, TP: version with pump casing and lanter bracket in cast iron

    • B-T, B-TP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted)

    • for clean liquids without abrasives, without suspended solids, non-explosive, non-aggressive for the pump materials

    • for increasing network pressure (follow local specifications)

    • for the reduced dimensions, these pumps are very well suitable to be mounted in cooling and air-conditioning machines and equipments, circulation, boiler feed

PF pre-filters in stainless steel, PFP pre-filters in polypropylene

    • close-coupled, single-impeller, centrifugal pumps; electric motor with extended shaft directly connected to the pump

    • NR, NR4: single head pump

    • NRD: twin head pump with bulit-in automatic switching valve. The two head can operate singularly or in parallel

    • pump casing with suction and delivery connections with the same diameter and on the same axis (in-line)

    • connections : Flanges PN 10, EN 1092-2.

    • counterflanges (on request):

      • NR,NR4 32,40,50,65 : Screwed flanges PN 16, EN 1092-1

      • NR4 100, NR4 125 : Flanges for welding PN 10, EN 1092-1

    • version with frequency converter (on request)

    • for clean liquids, without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0.2%)

    • for heating, conditioning, cooling and circulation plants

    • for civil and industrial applications

    • when low noise operation is required (n = 1450 rpm)

NMP self-priming centrifugal pumps with built-in strainer

    • close-coupled self-priming centrifugal pumps with built-in strainer

    • inner basket with Ø 3 mm holes

    • NMP: version with pump casing and lanter bracket in cast iron

    • B-NMP: version with pump casing and lanter bracket in bronze (the pumps are supplied fully painted)

    • for water circulation in swimming pool filtration systems

    • for clean or slightly dirty water with solids in suspension

Next

Dynatech
